XRSD
Prioritizing safety and rapid shutdown capabilities, the XRSD series offers a sophisticated module-level solution that guarantees the smooth functioning of both new and existing PV systems. Once activated by the SolaX Transmitter—XRSD-Core Kit, the XRSD modules ensure your connected PV system remains operational.
-
Video Anzeigen
Product Advantage
In case of emergencies, you have multiple shutdown options: either remotely control each individual panel through the SolaX cloud, toggle the AC breaker on the Transmitter, or engage the E-STOP button. This versatility makes the XRSD system a reliable safety measure for quick deactivation of your PV system as needed. Note: To achieve rapid shutdown, please use with the TRANSMITTER KIT (Model: XRSD-CORE KIT).
-
Assured SafetyModule-level rapid shutdown
IP68 with unrivaled reliability
-
High EfficiencyMax. 20A PV input current
Lower power consumption & wider operating voltage
-
Intelligent DesignFaster installation with plug-and-play cables and connectors
Ultra-low signal noise, enhancing system stability
-
Flexible AdaptabilityCompatible with all SolaX inverters and other major inverter brands
Compatible with mainstream PV panels
Product Parameters
-

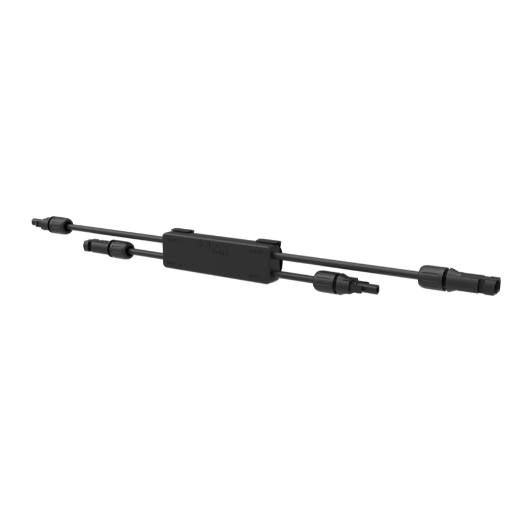

XRSD-1C-
MECHANISCH
Abmessungen (ohne Kabel und Anschlüsse) 130 x 36 x21 mm Gewicht 400 g Schutzklasse IP68 / NEMA6P -
ENTSPRECHUNG
Sicherheit EN 62109-1:2010 EMC EN IEC 61000-6-1 / 2 / 3 / 4; EN IEC 61000-3-2 / 3 / 11 / 12; EN 55011
-
-

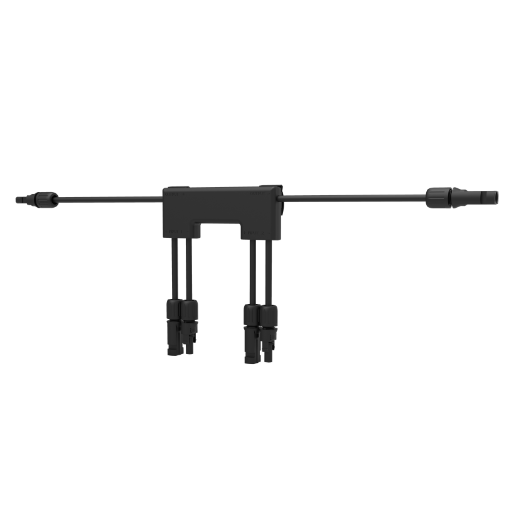

XRSD-2C
-
MECHANISCH
Abmessungen (ohne Kabel und Anschlüsse) 135 × 59 × 20 mm Gewicht 720 g Schutzklasse IP68 / NEMA6P -
ENTSPRECHUNG
Sicherheit EN 62109-1:2010 EMC EN IEC 61000-6-1 / 2 / 3 / 4; EN IEC 61000-3-2 / 3 / 11 / 12; EN 55011
-
