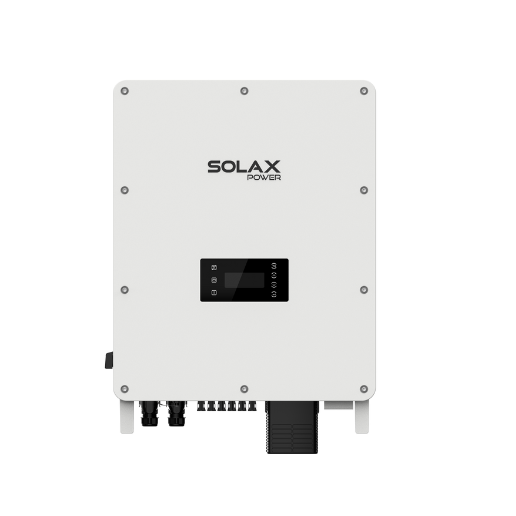

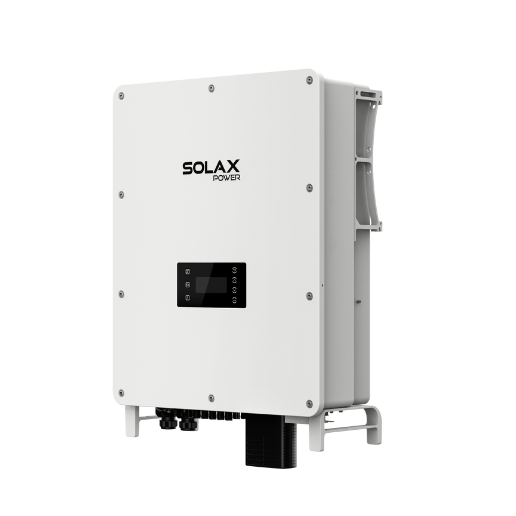

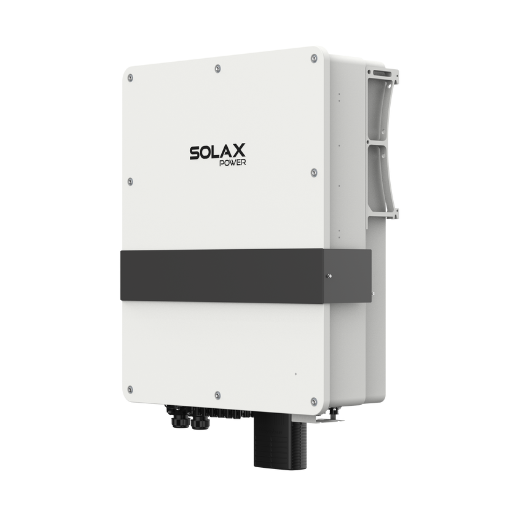

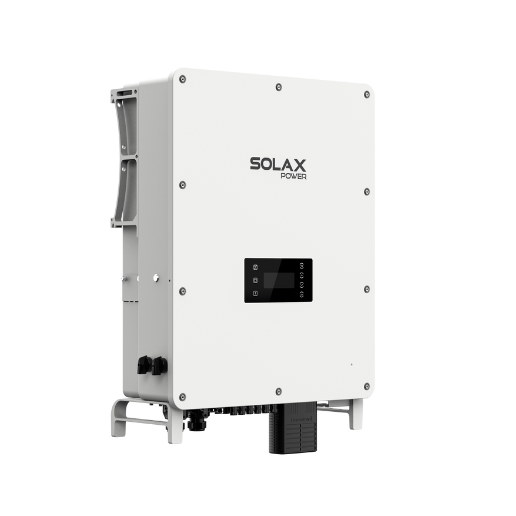

Hybrid-Wechselrichter

X3-AELIO

49.9K | 50K | 60K | 61K

Der hybride Solarwechselrichter X3-AELIO von SolaX verbindet intelligente Energieverwaltung mit hoher Effizienz. Mit VPP-Bereitschaft und einer kurzen Umschaltzeit unter 10 ms unterstützt er netzgebundenen und netzunabhängigen Betrieb. Die dualen unabhängigen Akkueingänge erlauben eine einfache Kapazitätserweiterung.

Produktvorteil

Der X3-AELIO stellt für 10 Sekunden eine hohe Energieeffizienz mit 200% PV-Eingang und 150% EPS-Ausgang sicher. Seine intelligenten Mikronetzfunktionen gleichen den Strom zwischen den Systemen aus, während Funktionen wie die drahtlose Verbrauchsmessung und die 24/7-Planung zur Optimierung der Energiespeicherung beitragen.

Kontakt
  • Robust

      • Robust back-up ability, switch over time ＜10ms, up to 150% EPS output for 10s

      • Support off-grid operation


  • Economic

      • Maximum 200% PV input

      • Maximum 40A input current per MPpT, support high power solar panel


  • Safe

      • IP66 protection level

      • AC&DC SPD type II, always guarding the inverter

      • AFCI optional

      • Smart IV Curve scan for early panel diagnosis

  • Intelligent

      • AI ready, forecasting solar generation and load consumption, smart energy management strategy*

      • VPP ready, SolaX cloud supports resource aggregator (2030.5, OpenADR )

      • Support smart scene function, intelligent loads management(e.g., Heat pump, EV charger)*

      • Micro-grid ready, supporting a variety of scenarios, both on-grid and off-grid, balancing power between PCS and Hybrid in real time

      • Support 7x24h scheduling mode

      • Support Wireless meter solution

      • Dual independent battery ports are ready to expand more capacity


Produktparameter

  • X3-AELIO-49.9K
  • X3-AELIO-49.9K-P
  • X3-AELIO-50K
  • X3-AELIO-60K
  • X3-AELIO-61K
  • X3-AELIO-49.9K
    • PV INPUT
        Max. recommended PV array power100 kWp
        MPPT voltage range160 ~ 950 V
        No. of MPP. trackers / strings per MPPT5/2
        Max. input current per MPPT40 A



    • AC INPUT & OUTPUT (ON-GRID)
        Rated output power49.9 kW



    • EPS (OFF-GRID) OUTPUT
        Rated EPS output power
        		49.9 kVA
        Switchover time<10 ms



    • GENERAL
        Dimensions (W /H / D)820 × 670 × 257 mm
        Net Weight＜100 kg



  • X3-AELIO-49.9K-P
    • PV INPUT
        Max. recommended PV array power120 kWp
        MPPT voltage range160 ~ 950 V
        No. of MPP. trackers / strings per MPPT6/2
        Max. input current per MPPT40 A



    • AC INPUT & OUTPUT (ON-GRID)
        Rated output power49.9 kW



    • EPS (OFF-GRID) OUTPUT
        Rated EPS output power
        		49.9 kVA
        Switchover time<10 ms



    • GENERAL
        Dimensions (W /H / D)820 × 670 × 257 mm
        Net Weight＜105 kg



  • X3-AELIO-50K
    • PV INPUT
        Max. recommended PV array power100 kWp
        MPPT voltage range160 ~ 950 V
        No. of MPP. trackers / strings per MPPT5/2
        Max. input current per MPPT40 A



    • AC INPUT & OUTPUT (ON-GRID)
        Rated output power50 kW



    • EPS (OFF-GRID) OUTPUT
        Rated EPS output power
        		50.0 kVA
        Switchover time<10 ms



    • GENERAL
        Dimensions (W /H / D)820 × 670 × 257 mm
        Net Weight＜100 kg



  • X3-AELIO-60K
    • PV INPUT
        Max. recommended PV array power120 kWp
        MPPT voltage range160 ~ 950 V
        No. of MPP. trackers / strings per MPPT6/2
        Max. input current per MPPT40 A



    • AC INPUT & OUTPUT (ON-GRID)
        Rated output power60 kW



    • EPS (OFF-GRID) OUTPUT
        Rated EPS output power
        		60.0 kVA
        Switchover time<10 ms



    • GENERAL
        Dimensions (W /H / D)820 × 670 × 257 mm
        Net Weight＜105 kg



  • X3-AELIO-61K
    • PV INPUT
        Max. recommended PV array power120 kWp
        MPPT voltage range160 ~ 950 V
        No. of MPP. trackers / strings per MPPT6/2
        Max. input current per MPPT40 A



    • AC INPUT & OUTPUT (ON-GRID)
        Rated output power61 kW



    • EPS (OFF-GRID) OUTPUT
        Rated EPS output power
        		61.0 kVA
        Switchover time<10 ms



    • GENERAL
        Dimensions (W /H / D)820 × 670 × 257 mm
        Net Weight＜105 kg
